Crush Resistance Tester

Product line: S18502

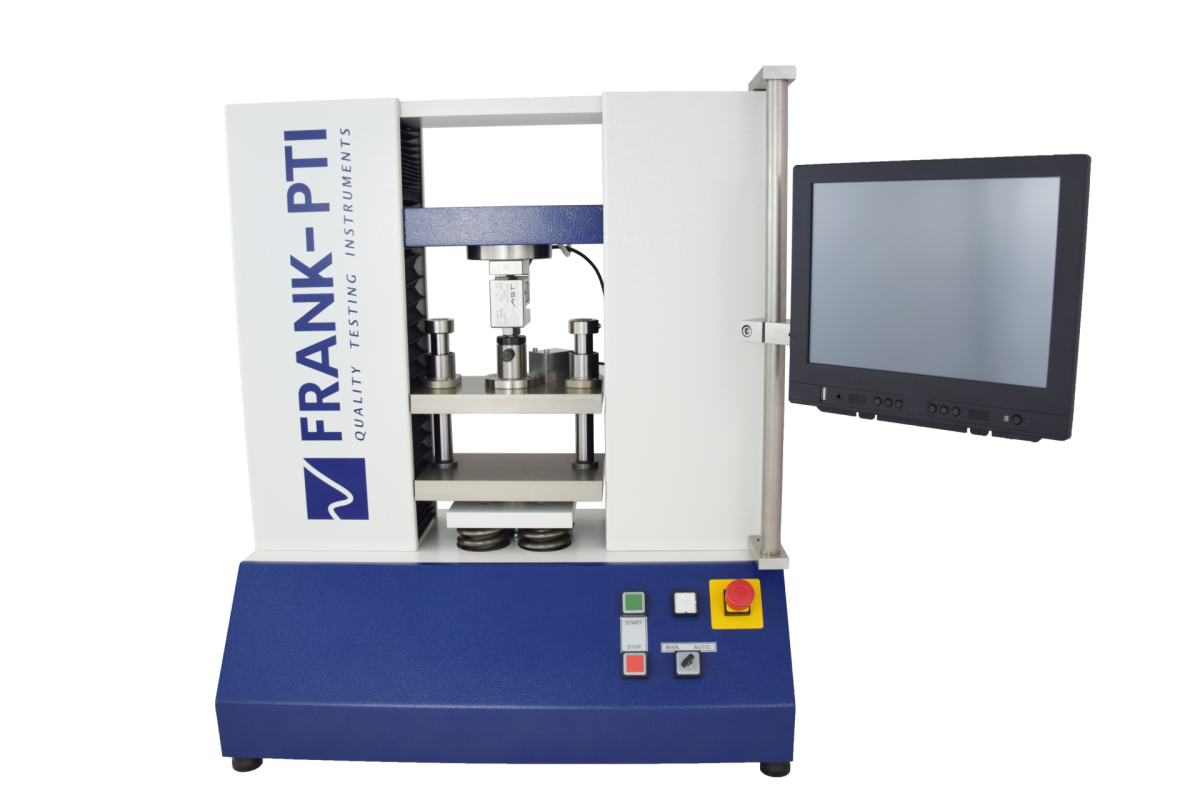

The crush tester has been specially developed for crush tests on various materials (paper, board, etc.) and is impressively simple to operate. Its robust construction and two frictionless spindles guarantee high measurement accuracy even under very heavy loads. The platens included are specially constructed to ensure the least possible deviation from the parallel. There are sample holders for different test procedures available as options. The unit is controlled via a touch screen where the individual testing methods can be selected and values and curves are displayed. To avoid wear to the touch screen the start and stop buttons are located separately. The crush tester is equipped with the FRANK-PTI standard connector.


Test description
The sample is placed, with or without sample holder depending on test procedure, between the plates. The appropriate test program is selected on the touch screen. The platens automatically travel to the correct start position. Pressing the start button causes the platens to compress the sample at a preset speed. On reaching the preset test criteria (depending on the test procedure, breaking of the sample or a preset distance) measuring stops and the platens automatically travel back to the start position. The test results are displayed both numerically and graphically on the touch screen. If more than one run of one of the two test series (MD/CD) is carried out they can be statistically compared and displayed as ratios.
Applicable Standards
  • DIN EN ISO: 3035, 3037, 7263ISO: 12192, 13820, 5628
  • TAPPI: T809, T811, T821, T822, T825, T829, T838, T839, T843
Features
  • Robust construction with two frictionless spindles
  • Easy operation via touch screen
  • Pressure plates with frictionless guidance guarantee high plan parallelism
  • Testing force up to 10.000 N
Specification
  • Robust construction with two frictionless spindles
  • Slopes and values displayed on the graphicaldisplay
  • The plates automatically return to the initial position after the test
  • Torsional stiff, heavy design
  • Manually adjustable limit switch
  • Pressure plates sample support for compression test (standard)
  • Double guide rails with platens guided on recirculating ball screws guarantee maximum parallelism
  • specially developed, particularly low-friction ball-bush guide mechanical overload protection
  • RS 232 interface for result transmission
  • printer interface for HP Laserjet-compatible printer
  • compatible with ProbeNet
  • optionally available: 4-point bending bridge with software
Available Models / 5kN / 10kN
  • Short / S185020000 / S185020002
  • Long / S185020001 / S185020003
    *more models on request
Technical Data
  • Power supply: 100-240V 50/60Hz /150W max
  • Compressed air connection: no
  • Water connection: no
Data
  • RS232 data output
  • USB Updates / Service / Printer
  • PS/2 interfaces mouse
Measurement
  • Test space dimension: L x W x H
  • Version short: 190 x 120 x 320mm (without tools)
  • 125 x 120 x 110mm (with pressure plates)
  • Version long: 190 x 120 x 700mm (without tools)
  • 125 x 120 x 490mm (with pressure plates)
    *final test space determined by used tools
  • test speed: 1-300mm/min
  • test force: 1N - 10kN
  • Max. travel way: depending on load cell and tools
  • Force resolution: 1 N - 5kN / 1-10kN
  • Accuracy: +- 1% depending on the load cell
Device Diemnsions
  • S185020000/2 Version short 450 x 560 x 670 mm (L x B x H)
  • S185020001/3 Version long 450 x 560 x 1050 mm (L x B x H)
Weight / Version / net / gross
  • S185020000/2 Version short / 115 kg / 141 kg
  • S185020001/3 Version long / 120 kg / 162 kg
