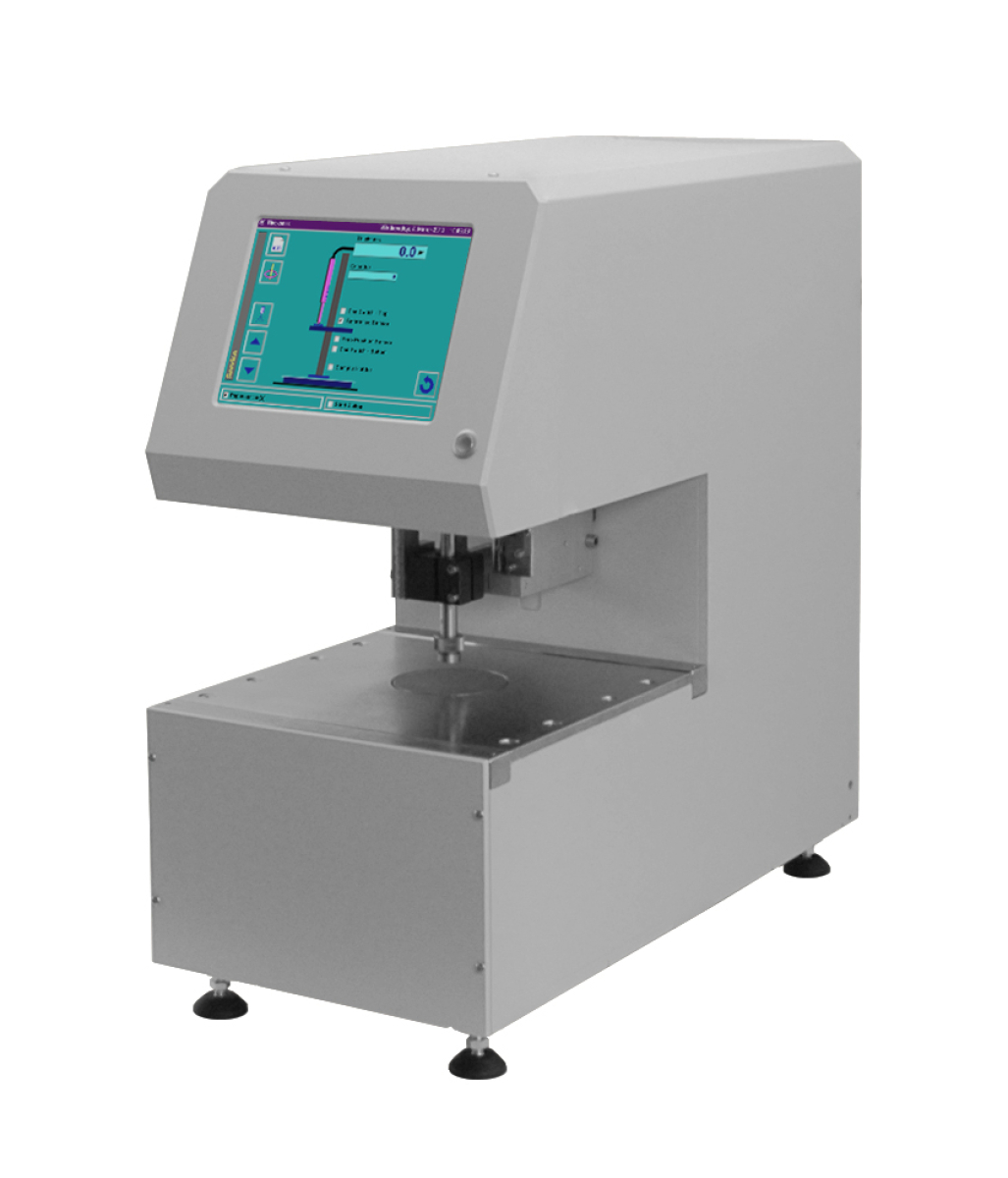

ModularLine Micrometer

To determine the single layer thickness of paper, board, textiles and fibrous textile fabric, the ModularLine micrometer is outstanding thanks to its new technology and precision manufactured mechanism. The high definition digital sensor is uniquely capable of providing reproducibility and exactness. The feed system, which is also digitally controlled, allows the lowering of the touch probe with exact and constant speed. Many variants with different touch probes and weights fulfil the requirements of differing test standards for contact pressure. Along with the single layer thickness, the measurement of several layers (e.g. ten layers) is also possible.

Test Description

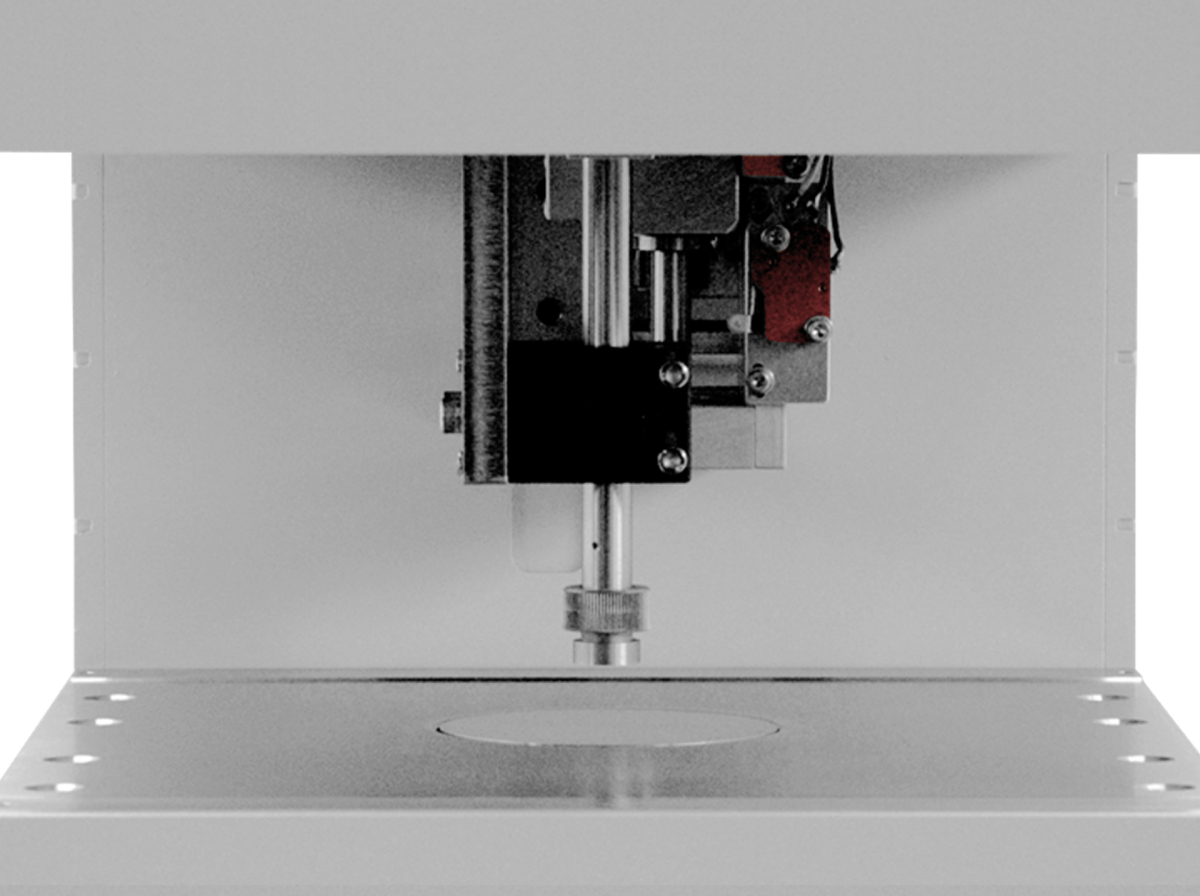

The single or multiple layer sample is placed on the measuring area. The start button is pushed and the test sequence is begun. The touch probe travels constantly downward at the set speed and is removed from the transport mechanism there, allowing it to apply the required pressure to the sample, free from outside influence. On elapsing of the period set in the test program, the value is determined and the touch probe travels back to the start position.
