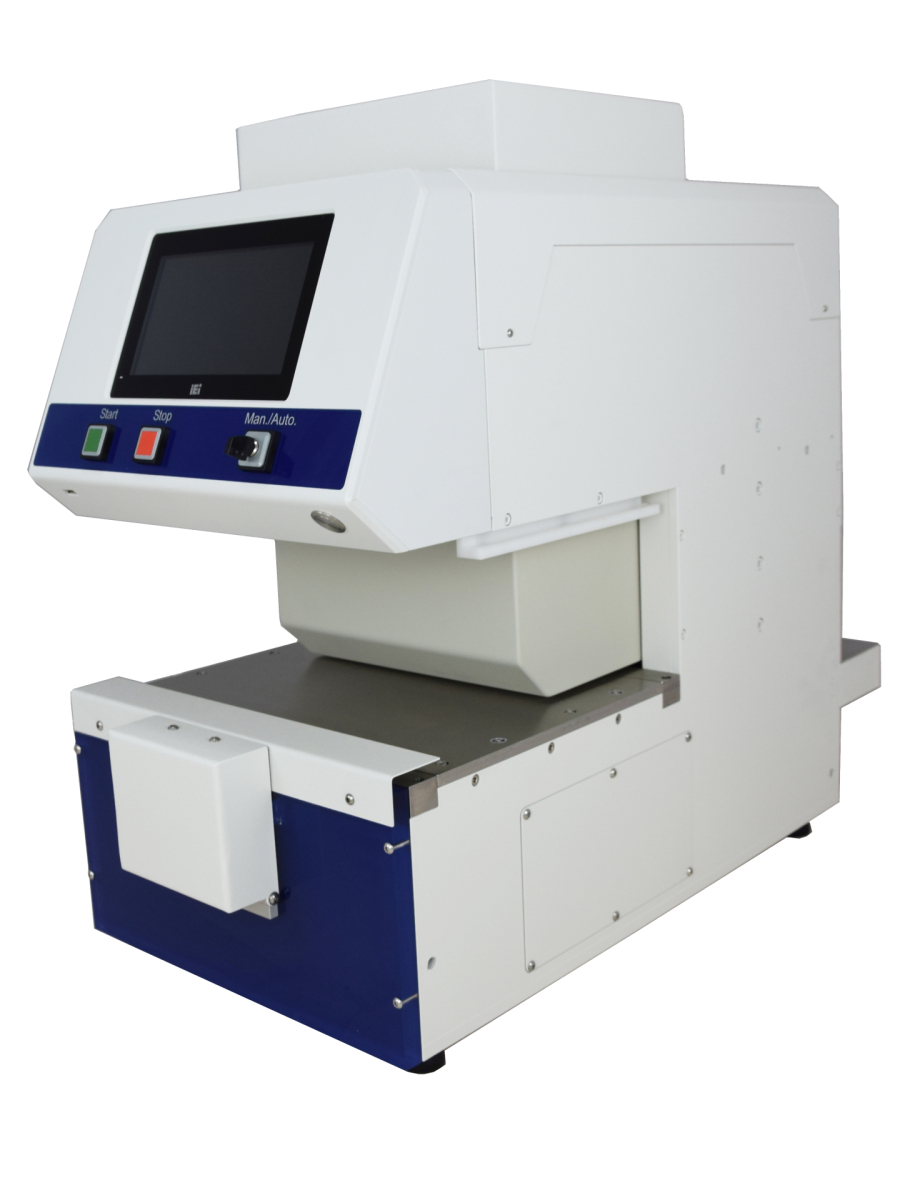

ML Spectro Analyzer

For measuring ISO whiteness, color, color differences, fluorescence and opacity. The ModularLine Spectro Analyzer color and whiteness tester uses xenon flash technology and a two-beam spectrophotometer. Depending on the standard to be applied, different UV levels are available, which can simulate both daylight and artificial light. The test instrument is designed for high accuracy as well as stability and reliability. A wide variety of algorithms is used to perform a large number of calculations for each measurement, which can be displayed and processed if required. The automatic stack changer gives the tester a level of convenience. Not only in a ModularLine but also in a stand alone use.

Test Description

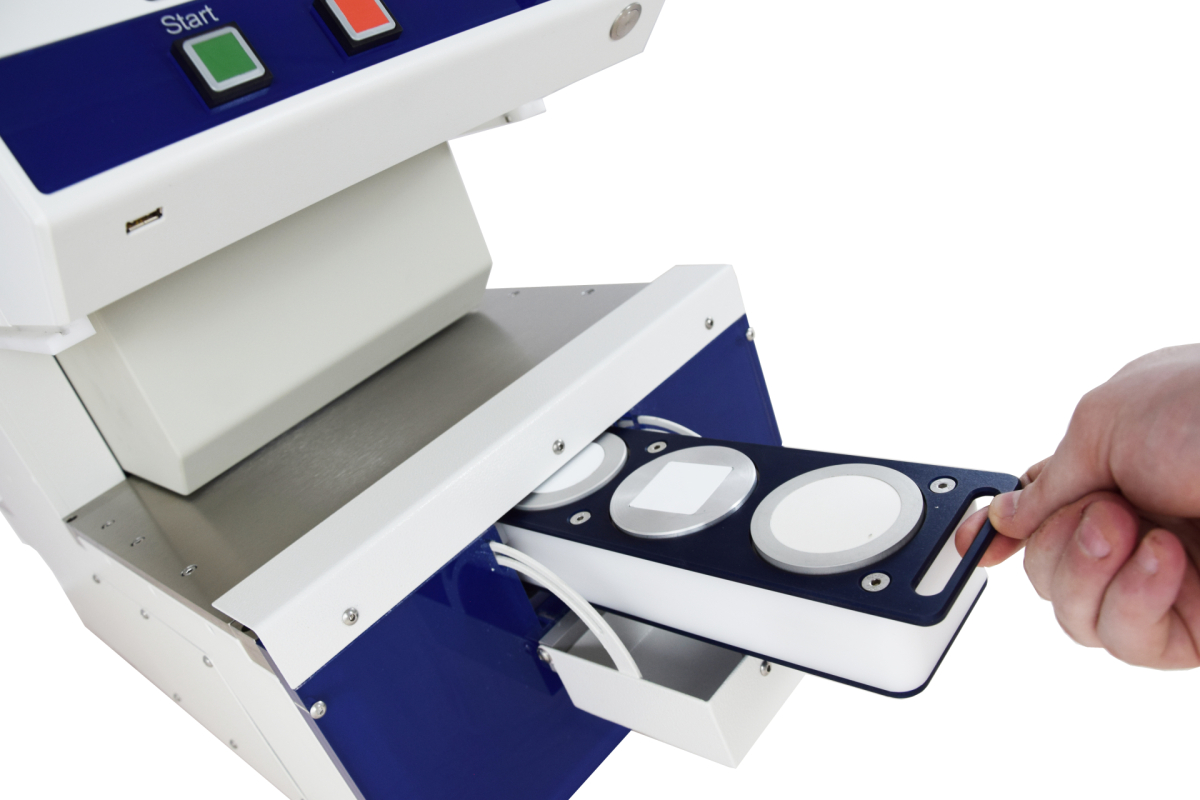

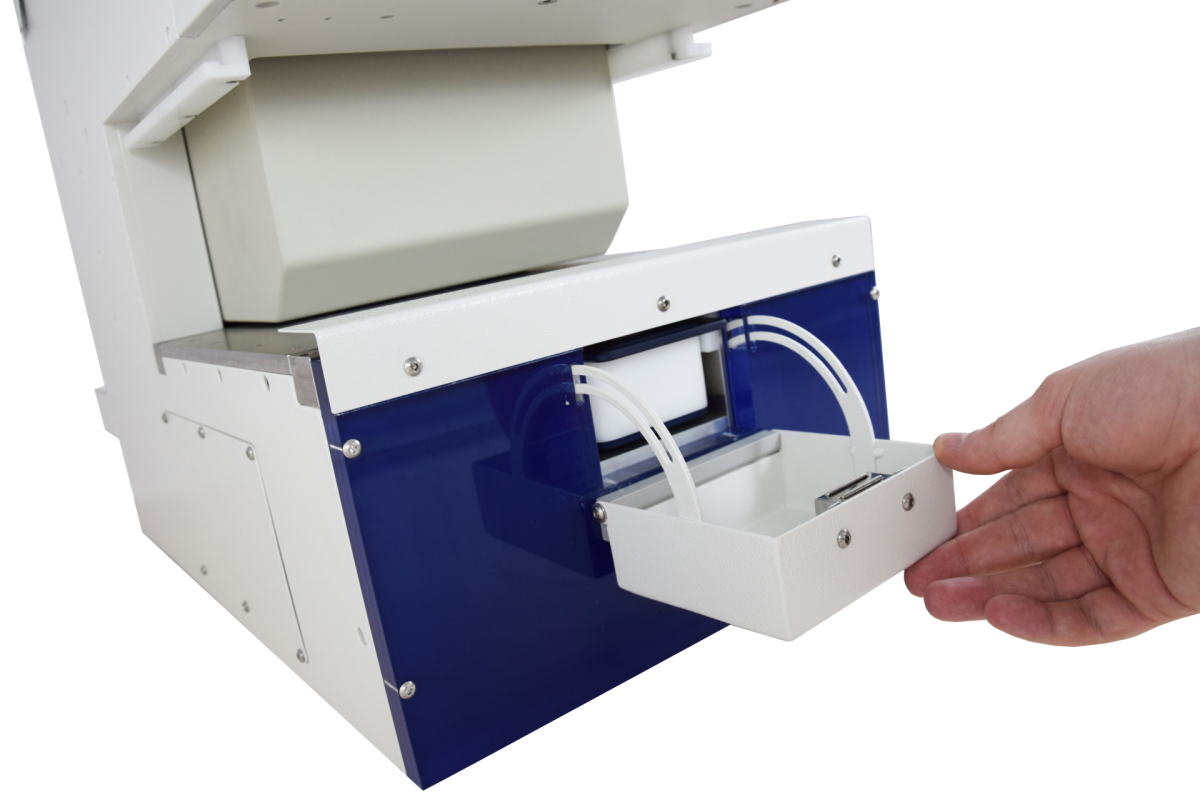

The measuring system of the tester is automatically placed on the specimen and the stack selected for measurement is moved to the correct position by the stack changer. After the measurement, the stack is automatically replaced by the black standard and another measurement is performed. The values measured are the basis for calculating the color properties, as well as the whiteness and opacity. The stack changer provides 6 positions, which can be optionally loaded with calibration standards for fully automatic basic calibration and/or with a wide variety of sample stacks. With the sample punch, which is available as an accessory, the individual stack containers are filled directly, thus avoiding contamination of the sample stack during handling.
